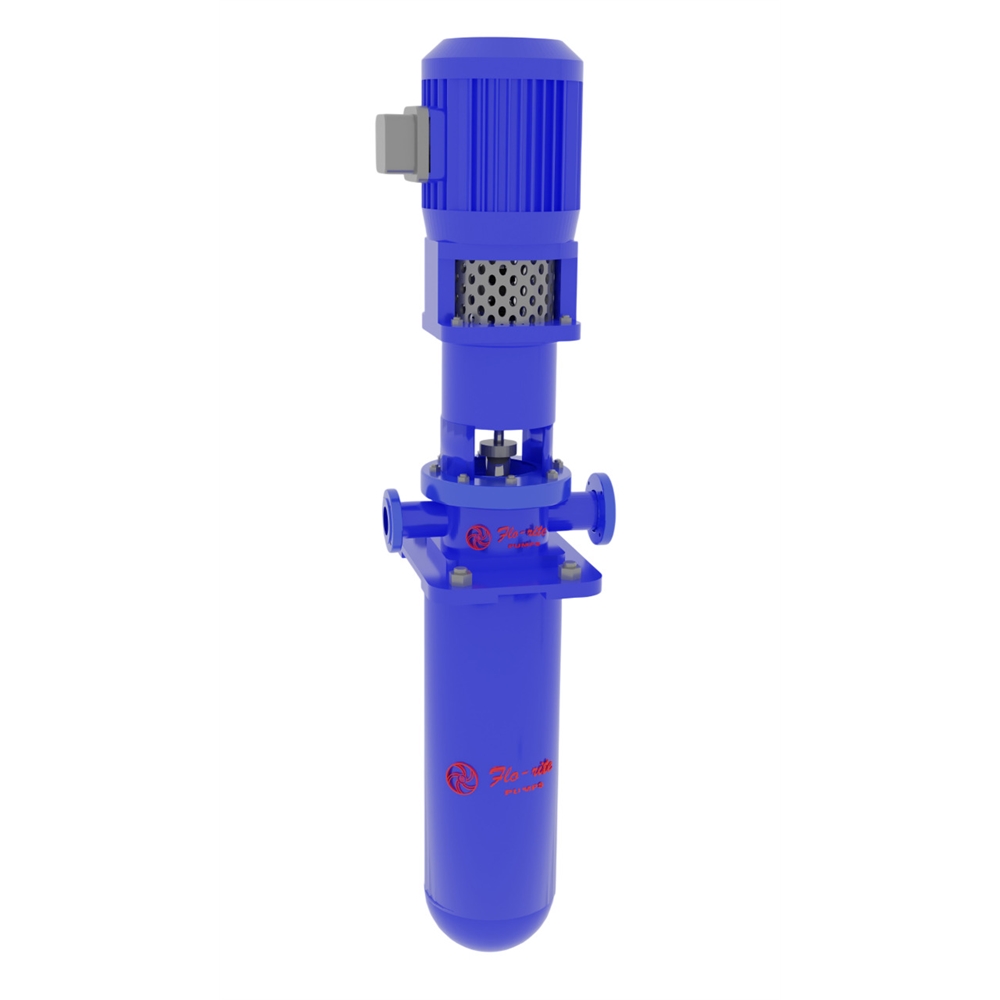

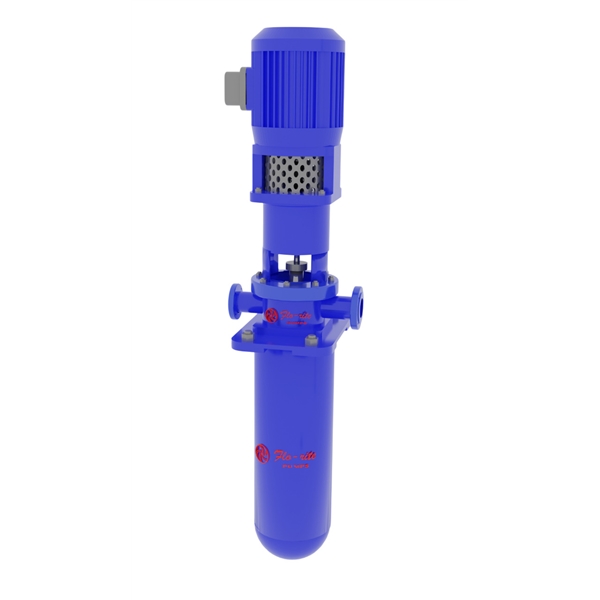

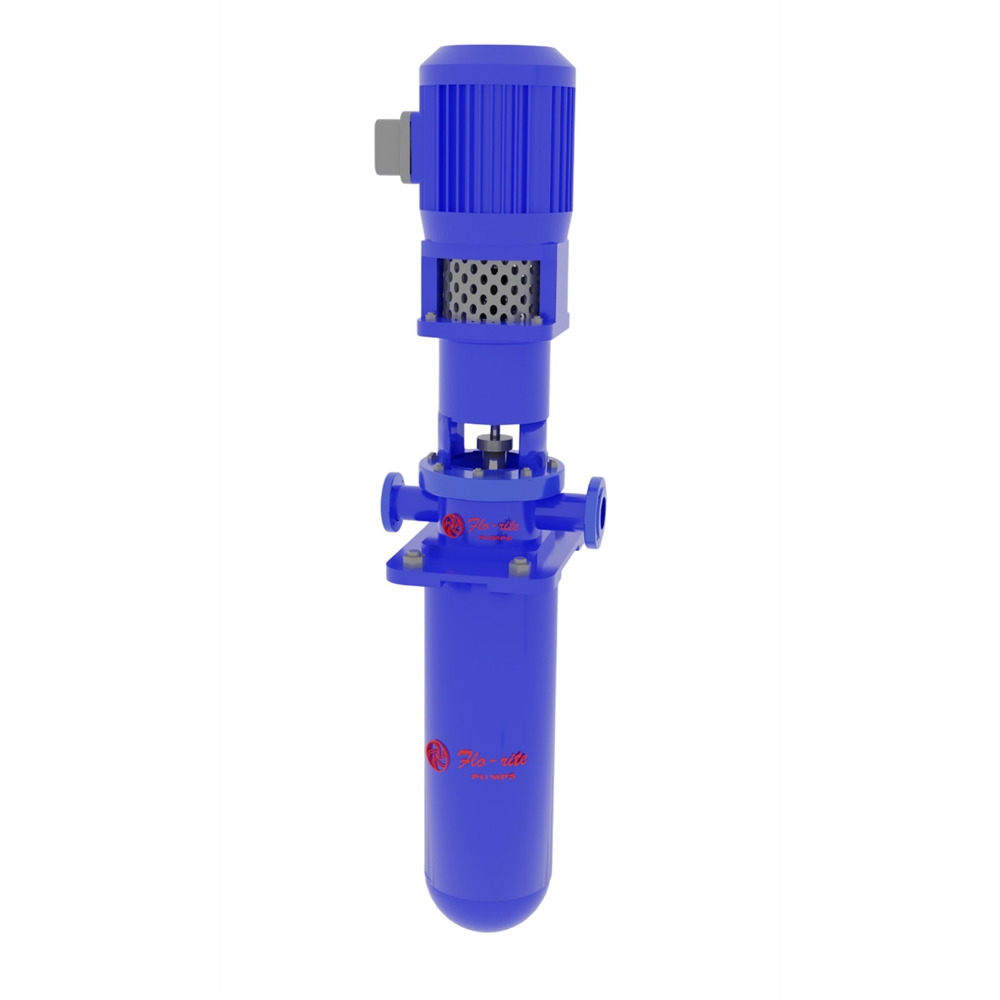

MSVC-N
Vertical Can Pump
Multi-Stage radially split Barrel type Vertical Can Pumps with stage casings, designed for inline application. Pumps meet API 610 specifications.
Features:
- Special line bearings for low friction losses, low vibration, low power consumption and low maintenance
- 1st impeller designed for low NPSH-R
- Can be provided with single / double / tandem seals
- Flanges as per API 610 specifications (class 150 or 300)
Technical Info:
- Suction Size: 50 mm to 150 mm
- Capacity: Up to 400 m³/hr (6,600 LPM)
- Head: Up to 400 mts.
- Material of Construction: C.I. / C.S. / Bronze / Alloy Steel
