FVS-N

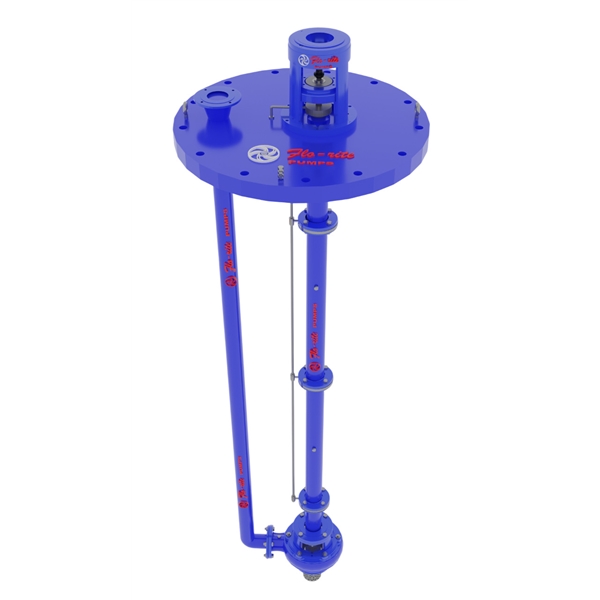

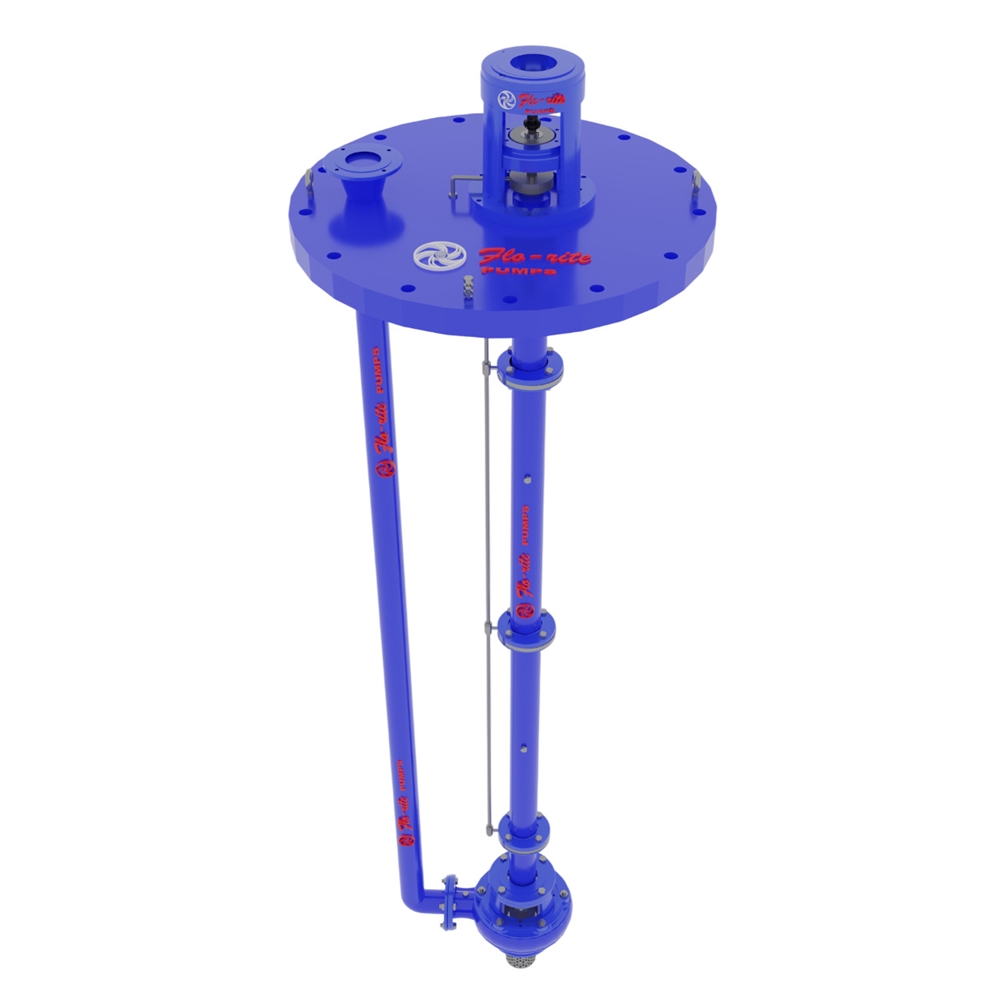

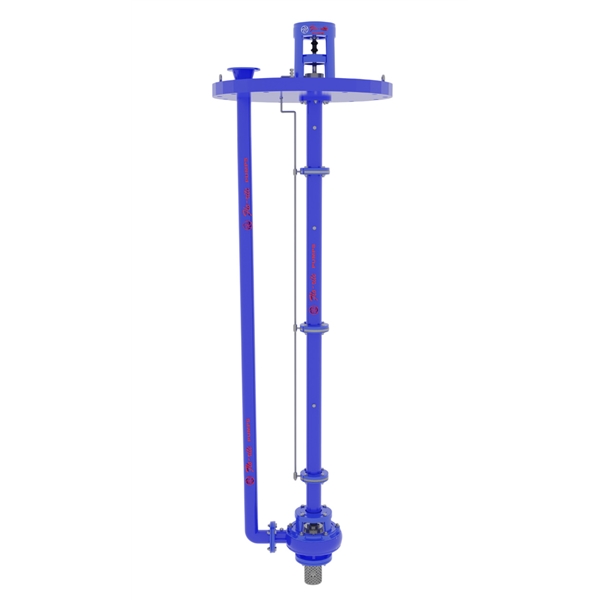

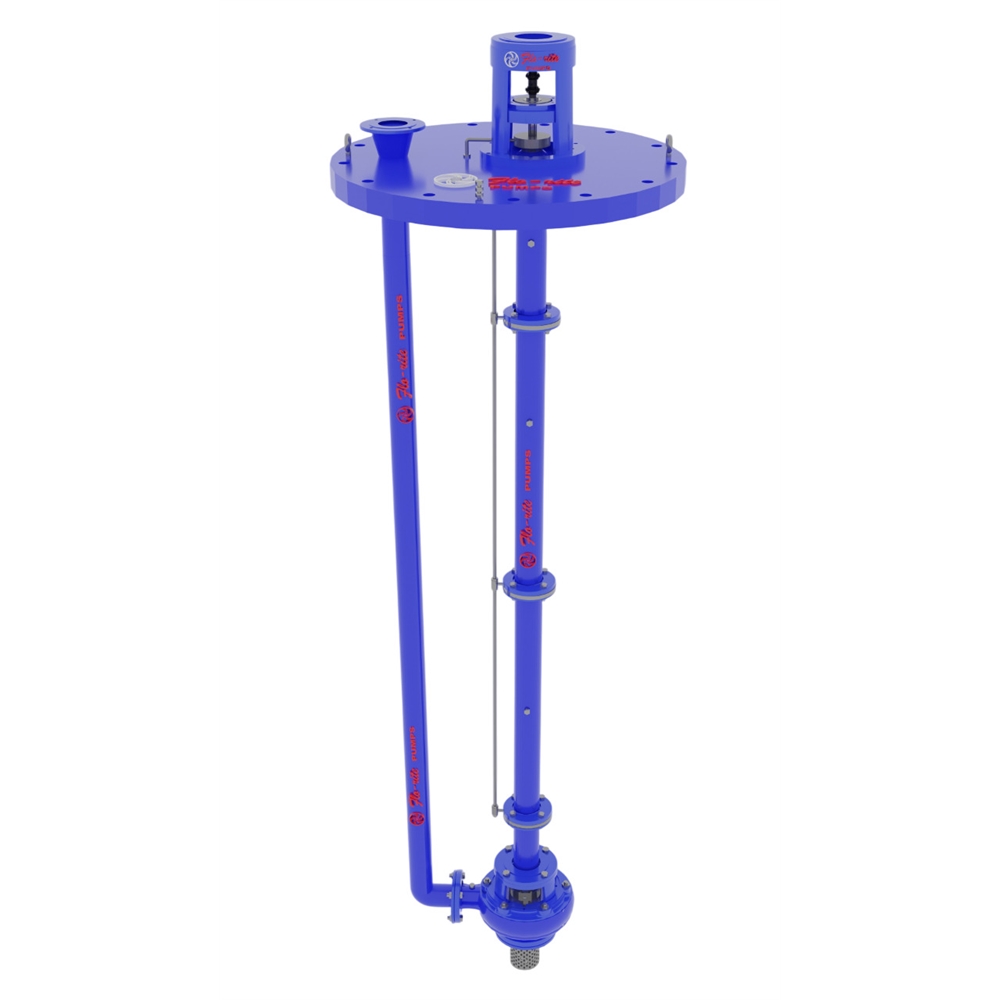

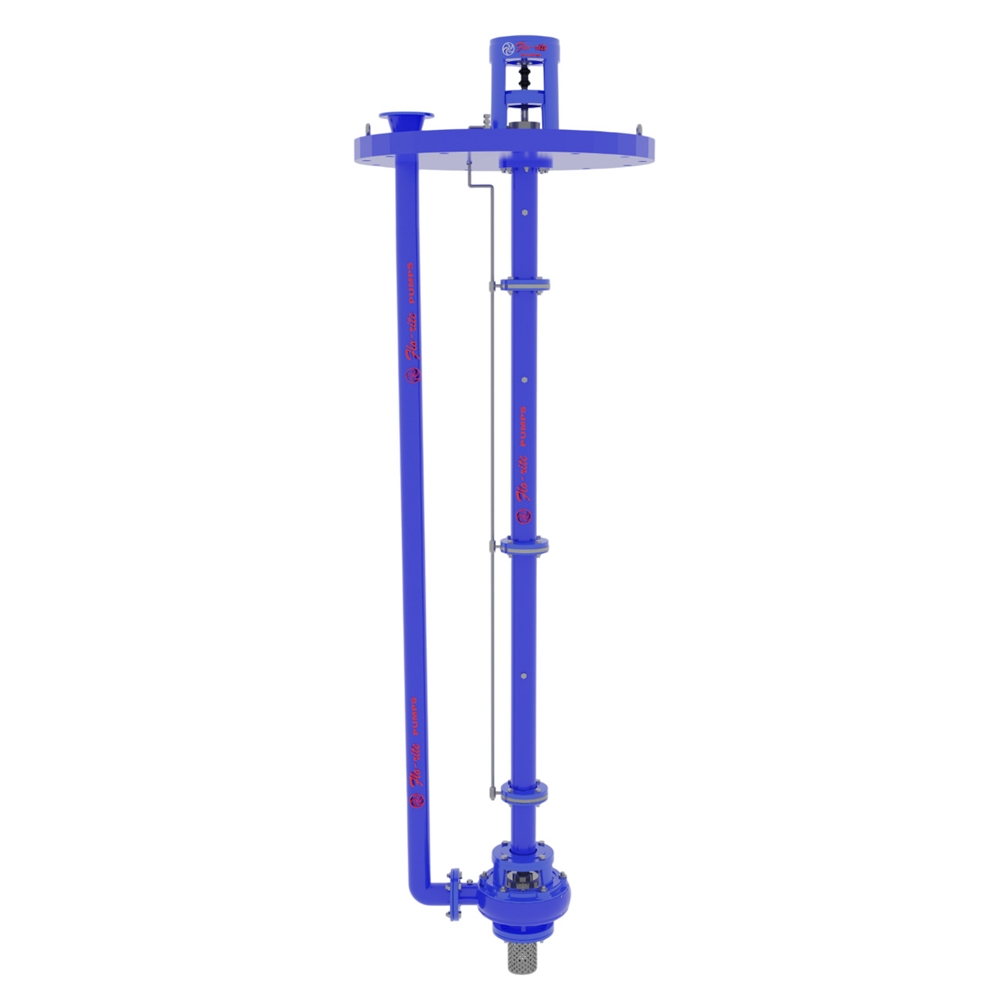

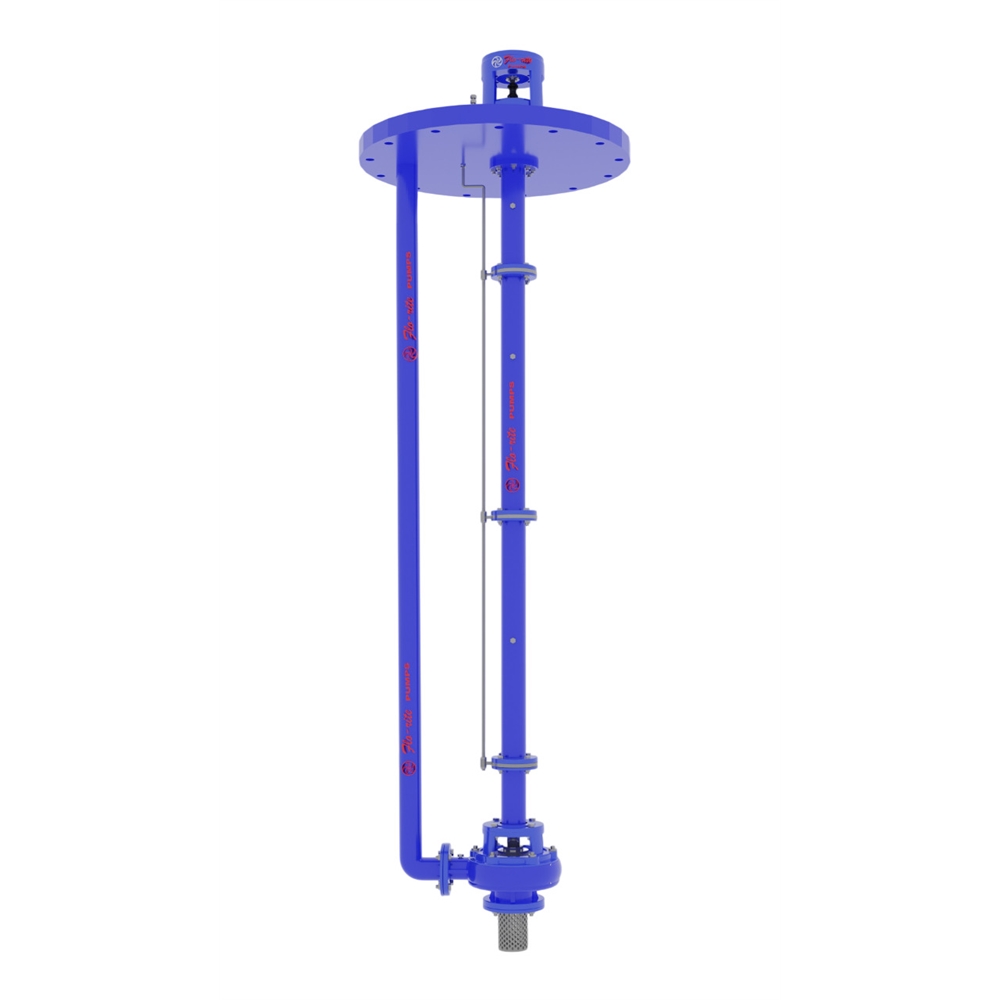

Vertical Sump Pump as per API 610
Single Stage Vertical Centrifugal pumps mounted on heavy duty surface plates. These pumps are suitable for handling liquids from wet and dry pits up to 5 mts. sump depths.
Available with:
- Special line bearings for low vibration and longer life
- Semi-open impellers for pumping slurries / sludges
- Mechanical seals for pumping chemicals & petrochemicals
- Generally conforming to API 610 specifications
Technical Info:
- Suction Size: Up to 200 mm
- Capacity: Up to 400 m³/hr (6,600 LPM)
- Head: Up to 60 mts.
- Material of Construction: C.I. / Ni C.I. / Ni Hard / C.S. / SS-304 & 316 / SS-316 L / Alloy-20
