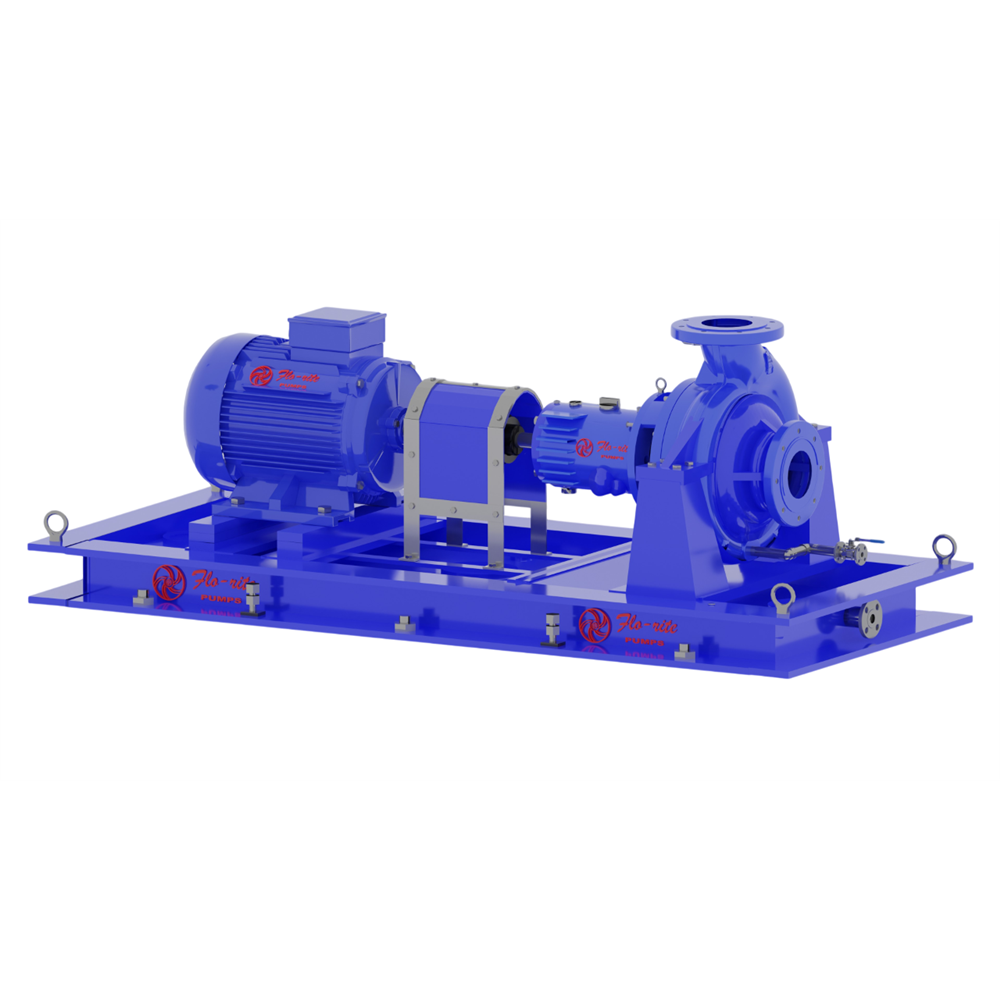

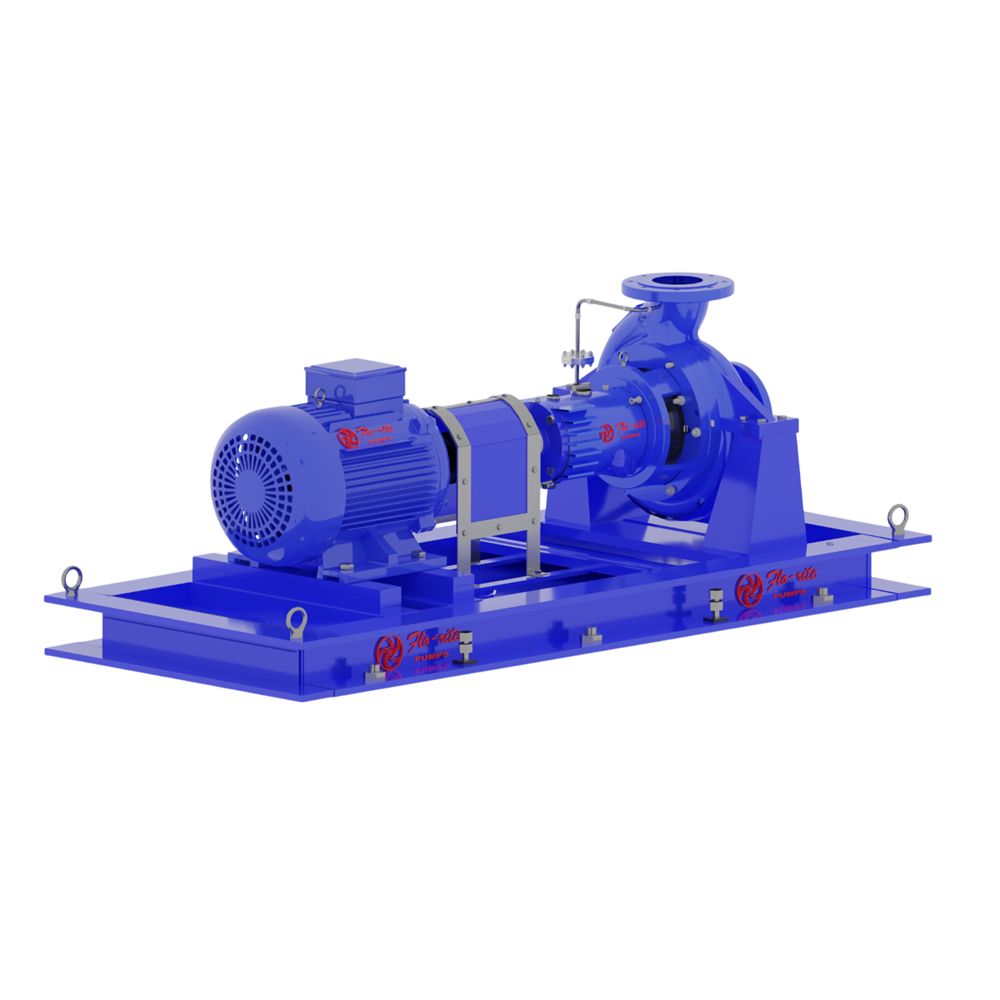

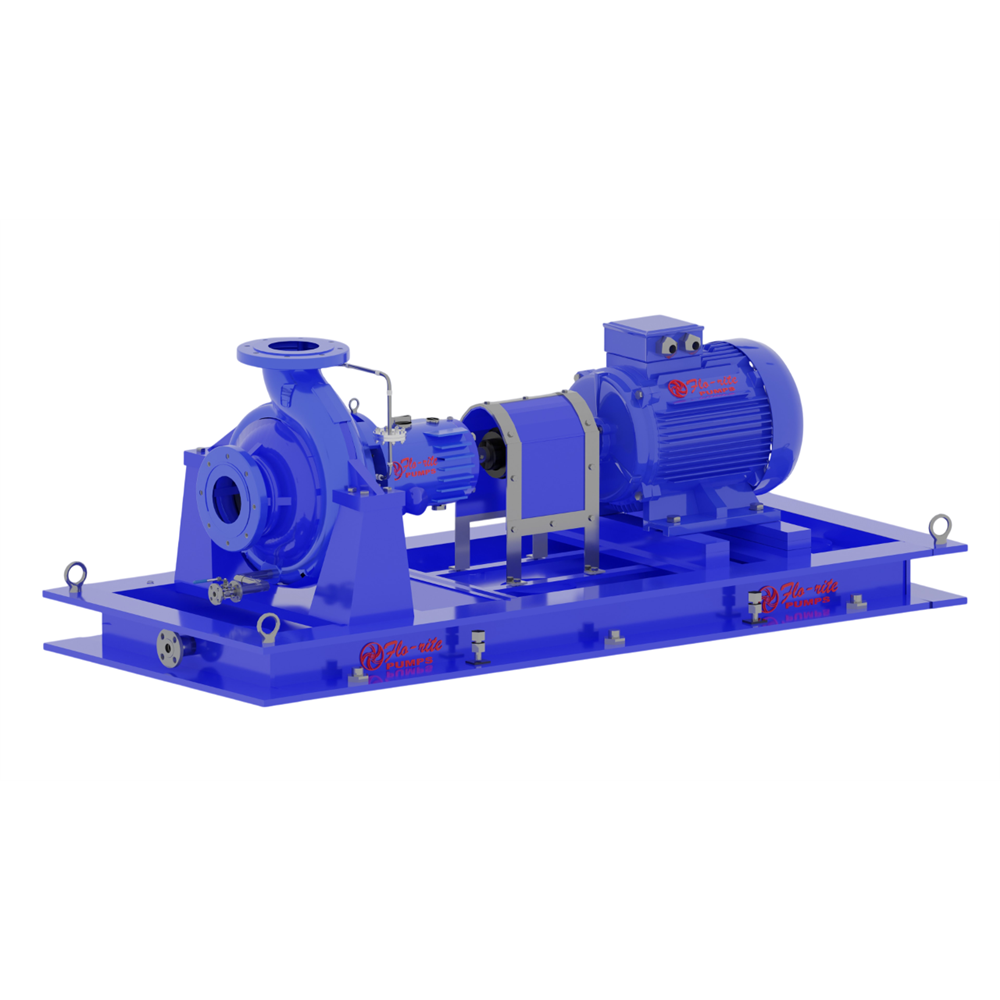

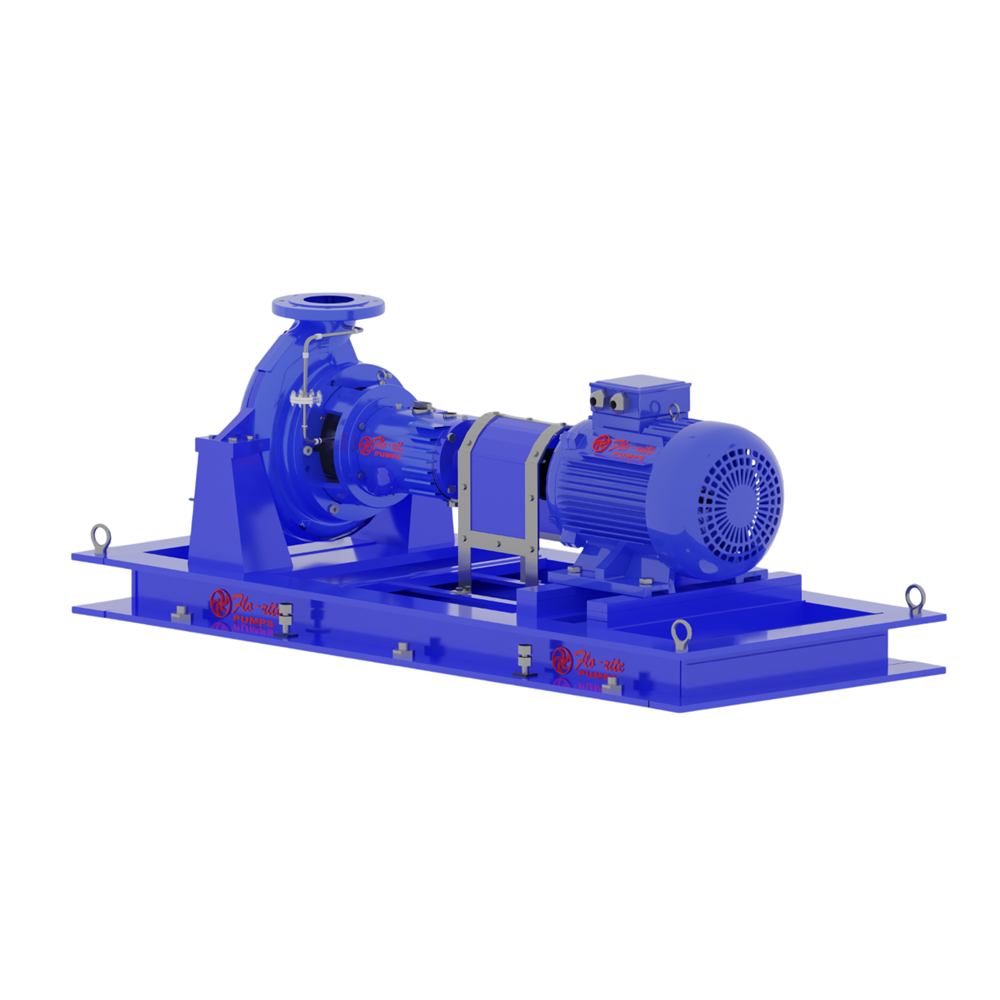

FCH-N-CS
Chemical Process Pump as per API 610
Heavy duty end suction Back Pull Out Centrifugal Process Pumps designed and generally conforming to API-610 specifications.
Features:
- Center-line support & Class 300 flanges
- Base plate as per API 610 design
- Oil lubricated heavy duty bearings for heavy axial loads and longer life
- Tested up to 40 kg/cm² pressure
- Tested for vibration & sound level
Technical Info:
- Suction Size: Up to 250 mm
- Capacity: Up to 660 m3/hr (11,000 LPM)
- Head: Up to 200 mts.
- Material of Construction: C.I. / C.S. / Bronze / SS-304 & 316 / SS-316 L / Alloy-20 and other alloys.
